Razor wire, also known as concertina wire or barbed tape, is a modern security fencing material made with high-tensile wire and sharp steel blades. It is designed to prevent intrusion by creating strong physical and psychological deterrents.
describe
Widely used in military, border control, prisons, airports, warehouses, and private properties, razor wire offers an effective, low-cost solution for perimeter security.

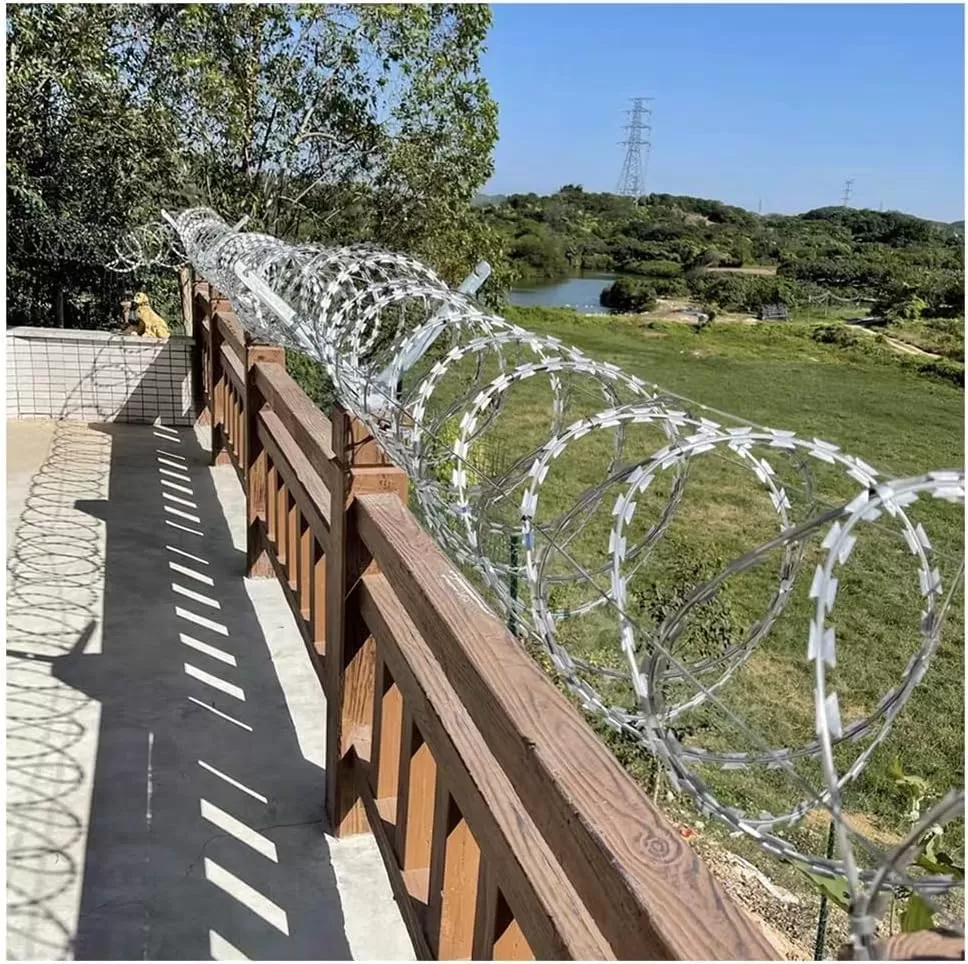

Application Scenarios
Razor Wire Size Specifications
| Peference Model | Thickness (mm) | Wire Diameter(mm) | Barb Length(mm) | Bard width(mm) | Bard Spacing(mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| CBT-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| CBT-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
• In stock: Usually shipped within 3-7 days
Customized orders: 10-20 days based on quantity
